Kent Armstrong - Smooth Sam Jazz Guitar Pickup Pickguard Mount

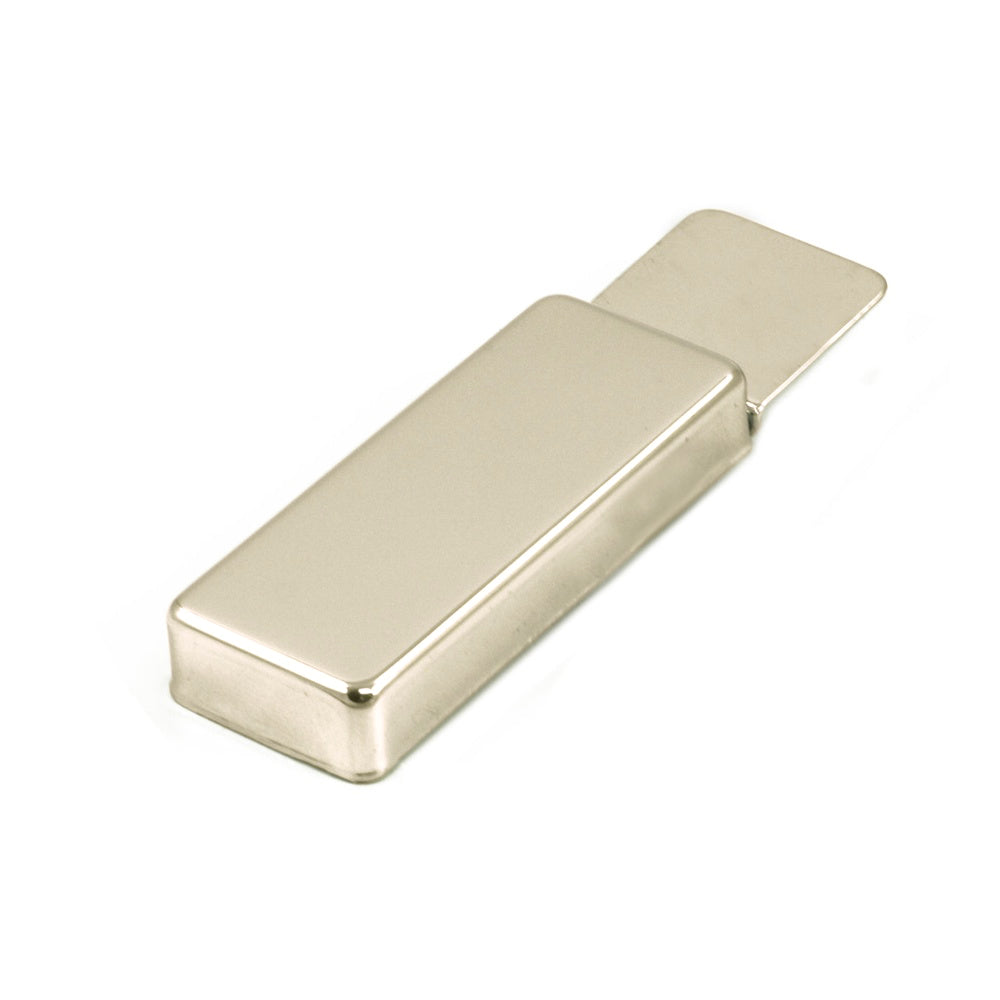

Smooth Sam Jazz Guitar Pickup Pickguard Mount
SKU:Code: HJGS-1CR
PRODUCT DETAILS
PRODUCT DETAILS
ALNICO / D.C. =8K- A sweet-sounding Humbucker Jazz pick-up designed for use with traditional Arch Top guitars. This version has a suitable mounting bracket attached for pickguard mounting. Made in the tradition of the Johnny Smith endorsed Gibson's introduced in the early 1960's. Has two solder tags on the underside to wire it up. Alnico bar magnets.
Tip on how to mount this Kent Armstrong Jazz Guitar pickup - there are two options for attaching this pickup to the pickguard / scratchplate:
- For the most inconspicuous method of mounting, rough up the top side of the metal side tab on the pickup as well as the underside of the pickguard and then use a contact adhesive such as Evo-stik.
- Another method is to drill two holes through both the pickguard and metal side tab on the pickup and use some small nuts and bolts to secure into position.
There are two solder lugs on the bottom of the pickup ready for your wiring. We recommend purchasing our Gibson braided wire. The lug closest to the mounting tabs is the ground or shield lug, and it should be wired to the Gibson wire's outer braid. The inner conductor of the wire will connect to the inner or hot lug. You can run the pickup straight into output endpin jack, or you may choose to use onboard volume and tone controls. These controls can be mounted to the instrument's pickguard, or into holes drilled into the face of the guitar. 500k for brighter tone, 250k for warmer tone.
Important measurements -
Overall size - 69mm x 29mm (excluding mounting bracket). Depth 12.5mm / 16mm depth including solder tags.
Bar magnet length - 58mm.
